3D scanners
Terrestrial 3D Laser Scanner
Compact terrestrial scanner, 2 Mpts/s
- Speed
- 2 Mpts/s
- Range
- 70–150 m+
- Weight
- 4.4 kg
3D Laser Scanners
Handheld SLAM Laser Scanner
Model SLAM2000 · Walk-and-scan mobile mapping, 925 g

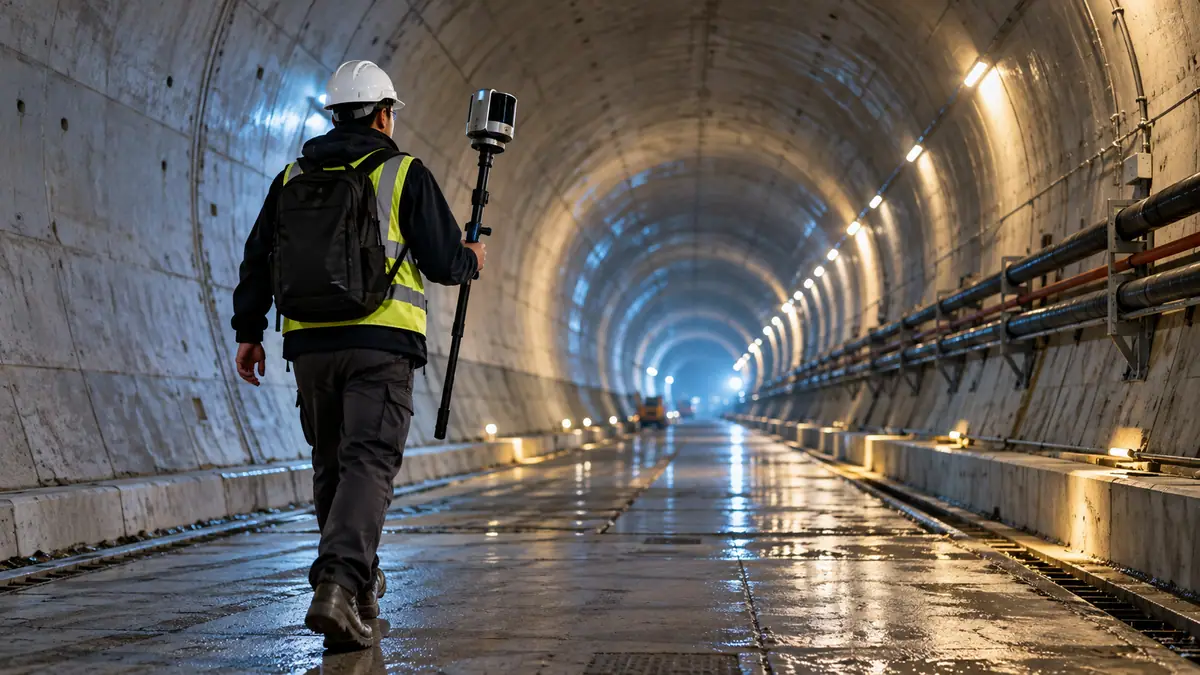

Walk through a building, tunnel or forest and get a 3D point cloud – no tripod set-ups. The SLAM scanner's rotating head captures 360° around you while the algorithm tracks your path.
- Range
- 0.1–70 m
- Accuracy
- ≤ 1 cm
- Weight
- 925 g
- Walk-and-scan SLAM mapping
- 360° rotating scan head
- 0.1–70 m range @ 80 % reflectivity
- ≤ 1 cm post-processed, ≤ 2 cm real time
- 925 g host
- Indoor and outdoor
MOQ 1 unitVolume pricing available
1-year warrantyLifetime remote support
Ships in 3–7 daysExpress, air or sea
OEM & ODMLogo, colour, packaging
Overview
Point-cloud thickness is ≤ 2 cm in real time and ≤ 1 cm after post-processing. The host weighs 925 g (1450 g with handle and base) and transfers data over WLAN or USB.
Applications
- Building interiors
- Tunnels & mines
- Forestry inventory
- Stockpile volumes
- Rapid as-builts
Related
Specifications
| Range | 0.1–70 m @ 80 % |
|---|---|
| Point-cloud thickness | ≤ 1 cm post-processed; ≤ 2 cm real time |
| Laser wavelength | 905 nm |
| Interface | WLAN, USB |
| Weight | 925 g host; 1450 g with handle and base |
| Host dimensions | 94.5 × 84.6 × 219 mm |
| Warranty | 1 year |
Need the full datasheet?
We send PDF datasheets, manuals and software details for each batch, together with your quotation.
Request datasheet and priceSpecifications are typical values and may change with product updates. Accuracy depends on satellite geometry, multipath, baseline length and correct set-up.
What is in the box
Typical configuration. Kits are adjusted to your order; tell us what you already own.
- Scanner host
- Handle and base
- Battery and charger
- Cables
- Carry case
SLAM2000 questions
Not answered here? Ask our engineers.
What are the payment and shipping terms for the SLAM2000?
MOQ is one unit. We accept T/T and quote EXW, FOB Shanghai, CIF or DAP. Stock units usually ship in 3–7 working days by express, air or sea freight, with a one-year warranty.
