GNSS machine control for excavators and dozers: 2D vs 3D systems explained

What is machine control?

Machine control is a system of sensors, positioning and software on construction equipment that compares the position of the bucket teeth or blade edge with the design and either guides the operator or moves the hydraulics automatically. A machine control system lets an excavator, dozer or grader cut to grade without waiting for grade stakes.

All machine control solutions combine three things:

• Machine sensors – tilt sensors or inertial measurement units (IMUs) on the body, boom, stick and bucket, or on the blade, that measure angles and geometry.
• A position reference – a rotating laser, a string line or benchmark, a GNSS receiver using RTK (real-time kinematic) corrections, or a robotic total station.
• A display and software – the in-cab screen that shows cut and fill, and, in automatic systems, a controller that drives hydraulic valves.

What is the difference between 2D and 3D machine control?

2D machine control controls depth and slope relative to a local reference you set, while 3D machine control knows the machine's position and heading in site coordinates and compares it to a full 3D design. 2D is simpler and cheaper; 3D removes most staking and handles complex surfaces.

Many contractors start with 2D on excavators and add 3D later, as most systems can be upgraded with GNSS receivers on the machine.

How does laser grading equipment work?

Laser grading equipment uses a rotating laser on a tripod to create a level or sloped reference plane, and a receiver on the machine's mast or stick reads the beam to keep the blade or bucket at grade. It is the oldest form of grade control system and is still very effective on flat and single- or dual-slope work.

Laser grade control systems are popular for building pads, car parks, sports fields and agricultural land levelling because they are accurate to millimetres over a few hundred metres and need no design file. Their limits are a single plane per set-up, line-of-sight to the laser, and no horizontal position, so curved roads, cross-falls that change and complex drainage surfaces call for a 3D grading system instead.

How does 3D GNSS machine control work?

GNSS machine control puts one or two RTK GNSS antennas on the machine, receives centimetre corrections from a base station or network, and combines the antenna positions with the sensor angles to compute the exact position of the cutting edge in site coordinates. The software then shows cut or fill against the design surface at that point.

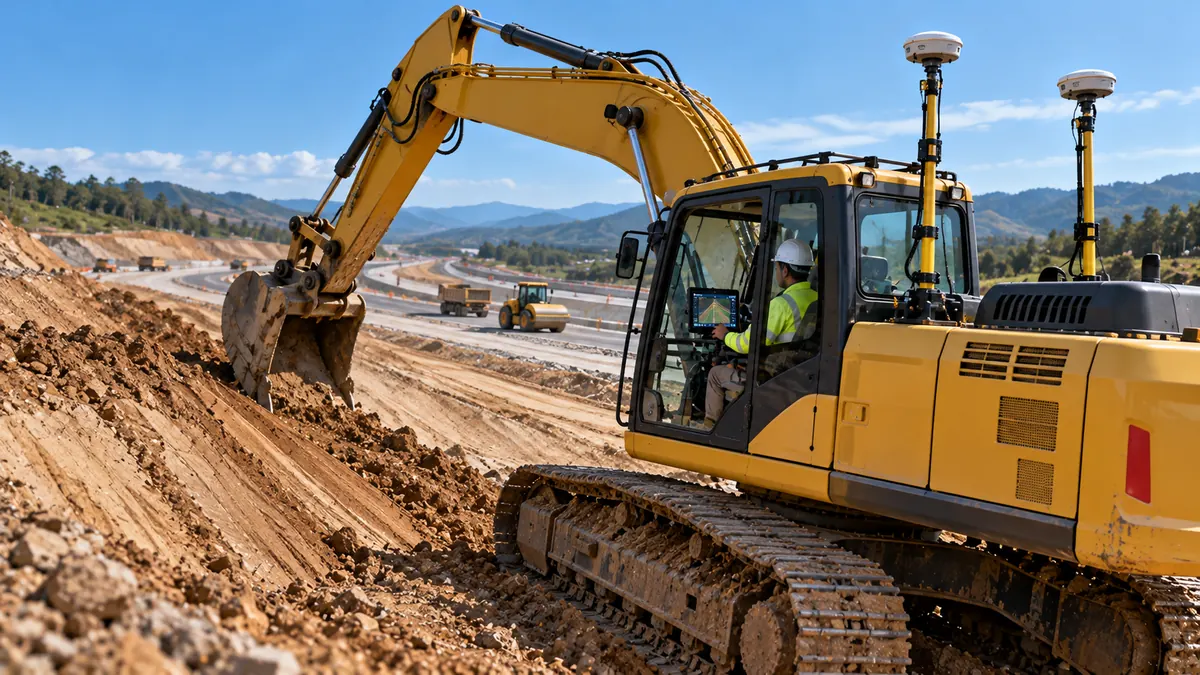

• Excavators usually carry two antennas on the counterweight or cab so heading is known even when the machine is stationary; sensors on boom, stick and bucket, and often a tilt-rotator, give the bucket tip position.
• Dozers mount antennas on masts on the blade or use mastless systems with an IMU on the body.
• Motor graders often use dual masts on the blade for cross-slope control.

RTK vertical precision is worse than horizontal, so 3D machine control with GNSS is normally used for bulk and sub-grade earthworks, and robotic total stations or lasers for fine grading to tighter tolerances. The basics of corrections are covered in our RTK GPS explainer.

What is 3D model machine control and what design data do you need?

3D model machine control means the machine works directly from a digital design model, usually surfaces (triangulated terrain models), alignments and line work, instead of from stakes. The quality of that model decides the quality of the finished grade.

Prepare design data carefully:

• Use the same coordinate system, datum and geoid model as the site control and the survey rovers. Our guide to datums and coordinate systems explains why mismatches cause offsets.
• Build separate surfaces for each layer: sub-grade, sub-base and finished levels.
• Check surfaces for spikes, gaps and wrong triangles before loading them on machines.
• Keep version control so every machine has the current design, and remove superseded files.

How to set up a site for GPS machine control step by step

Setting up GPS machine control on a new site means establishing control, defining the coordinate system, providing corrections and calibrating each machine. The order matters, because every machine and rover must agree.

1. Establish site control on stable marks around and inside the site, tied to the project coordinate system.
2. Do a site calibration (localisation) with a survey rover on those marks, and export the same calibration to every machine.
3. Set up corrections. Place a base receiver on a protected, open-sky control mark and broadcast RTCM corrections by UHF radio, or use a network RTK service over mobile data. Our RTK base station setup guide covers the details.
4. Load design surfaces and line work on each machine display.
5. Calibrate the machine: measure antenna and sensor offsets and bucket or blade dimensions exactly as the system requires.
6. Check on a known point. Touch the bucket tip or blade on a check point every morning and after any bucket change.
7. Verify the work with a survey rover on finished grades before handing over layers.

Our E1 GNSS RTK receiver works as a radio base, radio rover or CORS/NTRIP rover with a 1408-channel engine and up to 20 h battery, so the same model can serve as the site base and the checking rover. For large or hilly sites, our external UHF radio (410–470 MHz, 5 W or 25 W) extends base corrections to roughly 20–25 km in open, elevated terrain. Confirm that machine receivers support the same radio protocol, frequency and channel spacing before you buy.

Excavator machine control: is GPS worth it on a mini excavator?

Excavator machine control pays back fastest on trenching, drainage, foundations and batters, where operators otherwise stop repeatedly for grade checks. A GPS excavator system shows the bucket position against the design, so the operator digs to depth and slope without a grade checker in the trench.

For a mini excavator, GPS is worth it when the machine does a lot of utility trenching, landscaping or detailed shaping on design files; a 2D system is often enough for simple depth work. Mini excavator GPS systems use the same principles but lighter sensors and compact antennas. Excavator GPS machine control also improves safety, because fewer people work near the bucket checking levels.

How much does a machine control system cost?

As a broad guide, laser and 2D systems cost the least, and a 3D GNSS system typically costs several times as much per machine as a 2D system, before base station, design data and training costs. Prices vary widely by region, machine type and whether the system is indicate-only or automatic.

The biggest savings usually come from less over-excavation and imported fill, fewer passes, and less waiting for surveyors.
