Types of levels in surveying: dumpy, automatic, digital, laser and transit levels
Key takeaways
- Every surveying level creates a horizontal line of sight or plane and measures height differences against a staff or detector.
- Automatic levels use a pendulum compensator; dumpy and tilting levels rely on a precise bubble set by hand.
- A surveying digital level reads a bar-coded staff electronically and records the result, removing reading errors.
- Rotary lasers let one person set grades over large sites with a detector on a grade rod.
- A transit level adds a tilting telescope and horizontal circle to a level for simple angle and alignment work.
What are the different types of levels in surveying?
The different types of levels in surveying are optical levels (dumpy, tilting and automatic), digital levels, laser levels, transit levels and hand levels. All of them establish a horizontal reference so you can measure height differences between points, carry elevations from a benchmark and set out grades.
These types of levels, or different kinds of levels, fall into three groups:
- Optical levels – a telescope you look through at a graduated staff: dumpy, tilting and automatic levels.
- Electronic levels – a digital level that reads a bar-coded staff, and laser levels that project a reference plane picked up by eye or a detector.
- Simple levels – hand levels, sight levels and the builder's transit level used for quick site checks and layout.
A good survey level is chosen for the accuracy, range and crew size of the job, not for the newest technology. If you are deciding mainly between an automatic level and a laser for construction, our auto level vs laser level guide goes deeper on that choice.
How do the types of levels compare on accuracy and use?
Digital and precise optical levels are the most accurate, rotary lasers are the most productive for site grading, and hand levels are the quickest but least accurate. The table summarises typical figures; check each instrument's specification.
| Type | How it levels | Typical accuracy | Best use |
|---|---|---|---|
| Dumpy level | Fixed telescope, tubular bubble, foot screws | Similar to a builder's level when well adjusted | Teaching, basic site levelling |
| Tilting level | Split-bubble set with a tilting screw | High, especially with a parallel-plate micrometer | Precise levelling (now largely replaced) |
| Automatic (optical) level | Circular bubble plus pendulum compensator | About 1.0–2.5 mm per km double-run | Construction, engineering, benchmarks |
| Digital (electronic) level | Compensator plus electronic staff reading | About 0.3–1.5 mm per km, staff-dependent | Control levelling, monitoring, long lines |
| Rotary laser level | Self-levelling rotating beam | About ±1.5 to ±3 mm at 30 m | Site grading, slabs, earthworks |
| Line or cross-line laser | Self-levelling projected lines | A few millimetres over 10 m | Interiors, fit-out, tiling |
| Transit level | Bubble or compensator, tilting telescope | Builder's level class | Building layout, footings, alignment |
| Hand or sight level | Bubble seen in the eyepiece, held by hand | Centimetres to decimetres | Rough grades, reconnaissance, slopes |
What is a dumpy level and a tilting level?
A dumpy level is an optical level whose telescope is rigidly fixed to its vertical axis and levelled with foot screws and a long tubular bubble. A tilting level lets the telescope tilt slightly on a fine screw so the bubble can be centred for every sight, which made it faster and more precise.
Dumpy levels are robust and simple, so they still appear in training and on some sites, but they must be re-levelled carefully every time the telescope is turned. Tilting levels with coincidence (split) bubbles and parallel-plate micrometers were the standard for precise levelling before automatic and digital levels took over. Both are now mostly replaced by automatic levels, which are quicker and less sensitive to operator error.
What is an automatic or optical level?
An automatic level is an optical level with a pendulum compensator that keeps the line of sight horizontal once the instrument is roughly levelled with a circular bubble. It is the most common survey level on construction sites and in engineering surveys.
Typical optical level specifications are 20× to 32× magnification and a standard deviation of about 1.0–2.5 mm per kilometre of double-run levelling. Higher-magnification engineer's levels read smaller graduations more reliably over long sights. Check the compensator by tapping the tripod and watching the crosshair return, and run a two-peg test regularly to confirm the line of sight is truly horizontal. Mount it on a stable tripod with the standard 5/8"-11 thread, such as our aluminium survey tripod, which adjusts from about 90 to 158 cm and has pointed steel feet for soft ground.
What is a digital level in surveying, and how is it different from a digital smart level?
In surveying, a digital level (also called an electronic level) is an automatic level that reads a bar-coded staff with an image sensor and calculates the height and distance electronically. It removes reading and booking errors and stores every observation for download.
With an invar bar-code staff, precise digital levels reach around 0.3 mm per km; with standard fibreglass or aluminium bar-code staffs, around 1.0–1.5 mm per km is typical. They are the best digital level choice for control networks, settlement monitoring and long level runs because they also apply line-closure checks automatically. They need enough light on the staff and a clear view of the code, so heavy vegetation and dim tunnels can slow them down.
Search for digital level and most results are hand tools instead: a spirit level with an inclinometer that displays the level angle in degrees or percent. These are useful but they are not surveying instruments.
| Feature | Surveying digital level | Consumer digital smart level |
|---|---|---|
| Measures | Height differences and distances to a staff | Tilt angle of the tool itself |
| Typical accuracy | Sub-millimetre to about 1.5 mm per km | About ±0.1° to ±0.2° |
| Range | About 2 m to 100 m or more per sight | Length of the tool |
| Form | Tripod instrument plus bar-code staff | 2 ft levels, 4 foot digital level bars, small digital level boxes |
| Typical use | Survey control, monitoring, engineering | Carpentry, ramps, pipe falls, framing |
A digital level tool for the trades, whether a magnetic digital level, a digital level box, a 4 foot smart level or a digital level and angle finder combination, is handy for checking a ramp or a pipe fall. A digital level with slope percentage display, or any level with slope measurement, gives the percentage level of a surface directly; a digital angle level does the same in degrees. Some models add a laser line, sold as a digital level with laser. The best smart level for a joiner is not a survey instrument, so do not use one to transfer elevations across a site.
What is a laser level and when is a laser rotating level better?
A laser level projects a level line or plane that people read by eye or with a detector. A laser rotating level spins the beam through 360° to create a full reference plane, so one person with a detector on a grade rod can check grades anywhere on site.
- Rotary lasers – typically about ±1.5 to ±3 mm at 30 m, with working ranges of several hundred metres in diameter using a detector. Many models set single or dual slopes, so the same tool works as a slope level for drainage falls, car parks and sports fields. A ground leveling laser of this type also drives laser receivers on graders and dozers.
- Line and cross-line lasers – project visible lines on walls and floors for interior fit-out. A self leveling laser 360 projects a full horizontal ring; a green self leveling laser is easier to see indoors than red.
- Laser detector – a laser detector level receiver clipped to a rod finds an invisible or faint beam in sunlight and beeps on grade.
Lasers are now the most common construction leveling tools for slabs, footings and earthworks because they save a person. For the best self leveling laser on a site, look at the accuracy specification, the self-levelling range, IP rating and detector range rather than the beam colour alone. A self leveling laser with tripod and grade rod kit is the usual purchase.
What is a transit level and how does it differ from a level?
A transit level, or builder's transit level, is a level whose telescope can also tilt up and down and turn against a horizontal circle, so it can measure horizontal angles, plumb lines and simple vertical angles as well as levels. A plain level only sights horizontally.
The construction transit is a simpler cousin of the surveyor's transit, which was the forerunner of the theodolite. On site, a transit tool is used to set out building corners at 90°, line up footings and fence lines, check columns for plumb and give elevations. Searches for level and transit level, site level transit or construction transit level all describe this kind of transit construction tool. An optical transit level offers modest angle accuracy, so for precise angles or distances use an electronic theodolite or total station. Our SET1 electronic theodolite has a 30× telescope, automatic compensation and dual-side displays for alignment, verticality and setting out axes. The differences are explained in our theodolite vs total station article.

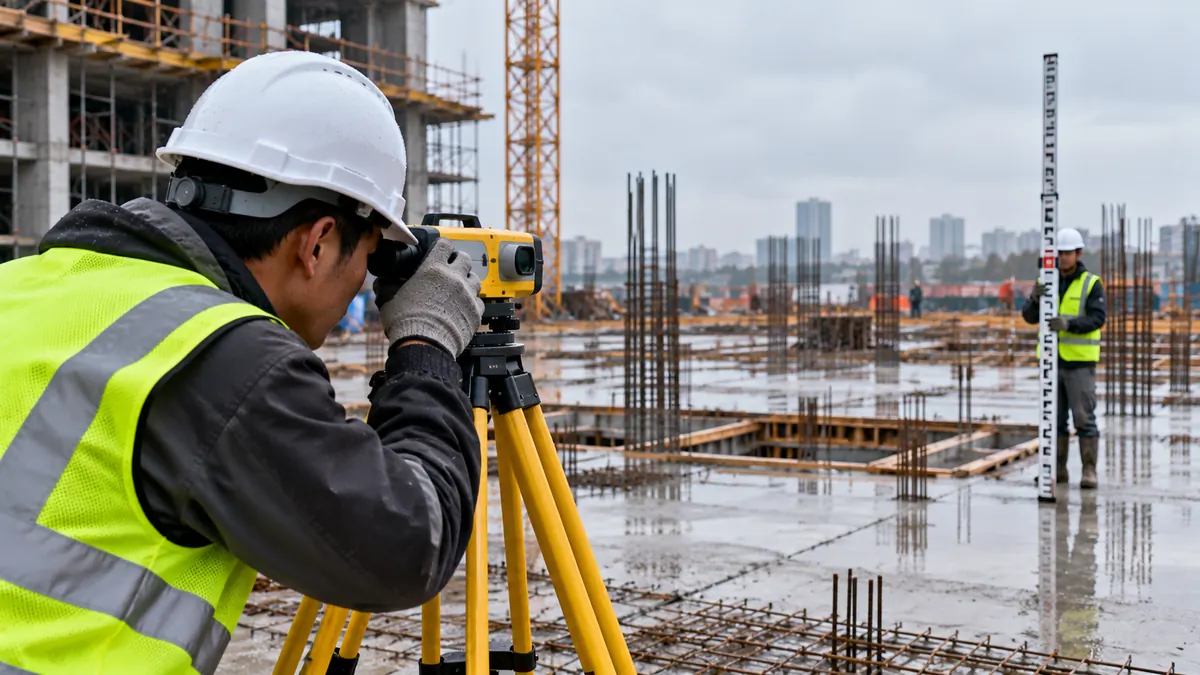

How to use a transit level or builder's level to find elevations
To use a transit level, set it up and level it, take a backsight on a benchmark to find the height of instrument, then take foresights on each point and subtract. The same procedure applies to any optical or digital level.
- Set up the tripod on firm ground with the head roughly level; a transit level tripod should have a flat head and the right thread for your instrument.
- Level the instrument with the foot screws until the bubble stays centred as you rotate it.
- Focus the eyepiece on the crosshairs, then the telescope on the rod, to remove parallax.
- Backsight a benchmark. Read the rod held plumb on a point of known elevation. Height of instrument = benchmark elevation + backsight.
- Foresight each point. Elevation = height of instrument − foresight reading.
- Close the loop. Finish on the benchmark or another known point and check the misclosure before using the results.
The rod is often called a transit stick or grade rod; a transit level kit normally includes the instrument, tripod and rod. On any elevation transit job, keep backsight and foresight lengths balanced and under about 60 m. Rod types are covered in our survey rods and markers guide.
What is a hand level or sight level?
A hand level is a small sighting tube with a bubble reflected into the view, held to the eye to sight a horizontal line. A sight level of this kind is used for rough elevation checks, slope reconnaissance and quick grade estimates.
A hand held sight level is cheap and light, but accuracy is only centimetres to decimetres depending on sight length and how steadily it is held. Some versions, often called Abney levels or clinometers, also read slope angles. A handheld site level is fine for checking whether water will drain or for timber cruising; it is not suitable for benchmarks or design grades.
Which type of level should you choose?
Choose by accuracy, distance and crew size. The decision table covers common jobs.
| Job | Recommended level | Why |
|---|---|---|
| Benchmark and control levelling | Digital level or precise automatic level | Highest accuracy, recorded observations |
| General construction levels | Automatic level | Reliable, low cost, easy to check |
| Grading, slabs and earthworks | Rotary laser with detector | One-person operation, slope settings |
| Building layout with angles | Transit level or theodolite | Levels plus alignment and plumb |
| Rough checks and slopes | Hand or sight level | Fast, pocket-sized |
| Heights on steep or broken ground | Total station | Trigonometric heights over long distances |
On steep terrain or long lines, a total station measuring trigonometric heights can be faster than a level. Our TS1000 total station offers 2" angle accuracy and 2 mm + 2 ppm distance accuracy to a prism out to 7500 m. To set up an instrument kit with tripods and accessories, request a quote.
Frequently asked questions
What are the 4 main types of levels in surveying?
The four main types are the dumpy level, the tilting level, the automatic level and the digital level. Many lists also include laser levels and hand levels. Dumpy and tilting levels rely on a bubble set by hand, the automatic level uses a compensator, and the digital level reads a bar-coded staff electronically for the highest productivity and accuracy.
Is a transit the same as a level?
No. A level only gives a horizontal line of sight for measuring height differences. A transit level, or builder's transit, also lets the telescope tilt vertically and turn against a horizontal circle, so it can lay out angles, check plumb and align footings. For precise angles and distances, surveyors use an electronic theodolite or total station instead.
Which is more accurate, a laser level or an optical level?
A good automatic optical level or digital level is generally more accurate than a construction laser over typical survey distances, reaching 1–2 mm per km or better. Rotary lasers typically achieve about ±1.5 to ±3 mm at 30 m, which is ample for slabs and grading. Lasers win on productivity because one person can work alone with a detector.
What is an electronic level used for?
An electronic level, or digital level, is used for control levelling, benchmark networks, settlement and deformation monitoring, and long engineering level runs. It reads a bar-coded staff automatically, stores heights and distances, and checks closures, which removes reading errors. In everyday trade use, the term electronic level can also mean a handheld inclinometer, which only measures tilt.
What is the best digital level for surveying?
The best digital level for surveying matches your accuracy class: an invar-staff precise model for control and monitoring, or a standard model reading fibreglass bar-code staffs for construction. Check the stated accuracy per kilometre, minimum and maximum reading distances, data export to your software, battery life and local calibration support before buying.
How often should a level be checked?
Run a two-peg test when you receive the instrument, after any knock or transport over rough roads, and at regular intervals, for example monthly on busy sites. Also check the circular bubble and, for automatic levels, the compensator. Small collimation errors cancel when backsight and foresight distances are equal, so balance your sights as well.
